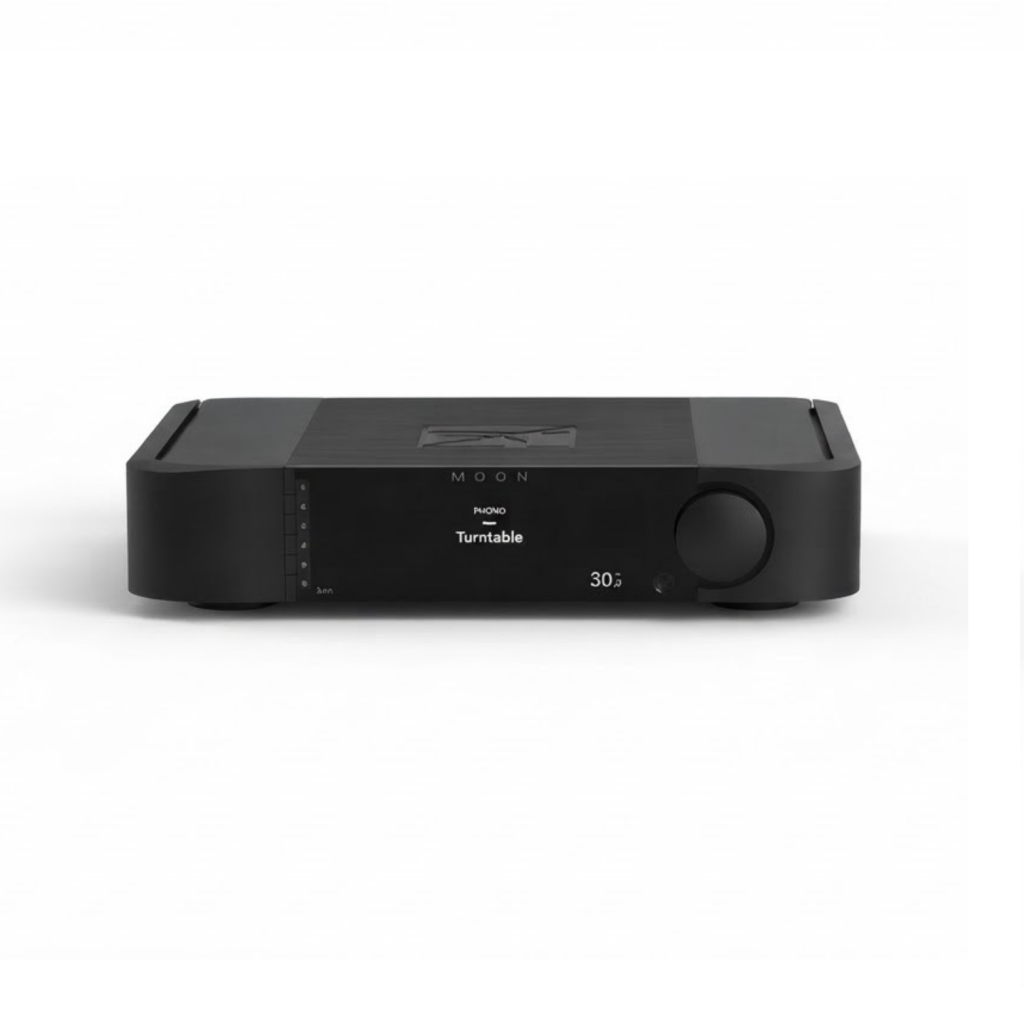

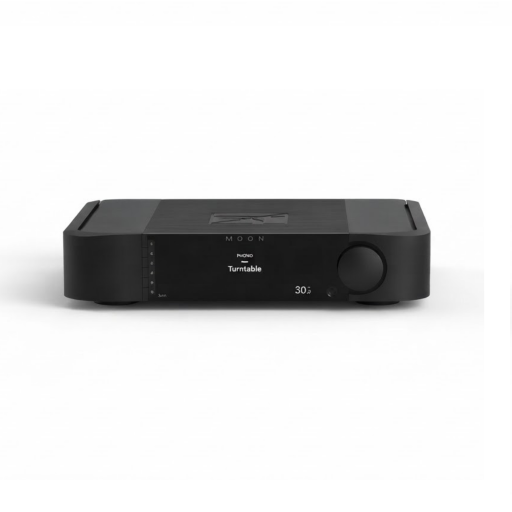

Moon Compass Collection 341 Integrated Amplifier
-
£4,400.00
- Product Code: 341
- Availability: 1
Available Options
Moon Compass Collection 341 Integrated Amplifier
Available
soon!
The all-analogue MOON 341 is designed for music lovers and
audiophiles who prioritise quality amplification in an integrated amplifier
over digital conversion and network playback. Part of the Compass Collection,
its architecture combines preamplification and power amplification in a
refreshed single-chassis design featuring a phono stage and a graphical
interface.
Performance and
Reliability
The MOON 341 is engineered around a fully analogue signal path,
combining a balanced analogue preamplifier with proprietary MDCA amplification
technology.
Delivering 100 watts per channel into 8 ohms and 200 watts
into 4 ohms, the 341 provides the control and power required to drive a wide
range of loudspeakers with confidence.
Its 800-watt MOON Hybrid Power supply with Active Power
Factor Correction provides stable, efficient power to the amplifier circuitry,
while a damping factor of 425 and a signal-to-noise ratio of 108 dB support
precise control and a low noise floor.
Experience and Design
The MOON 341 design makes a refined analogue system feel
simple and intuitive.

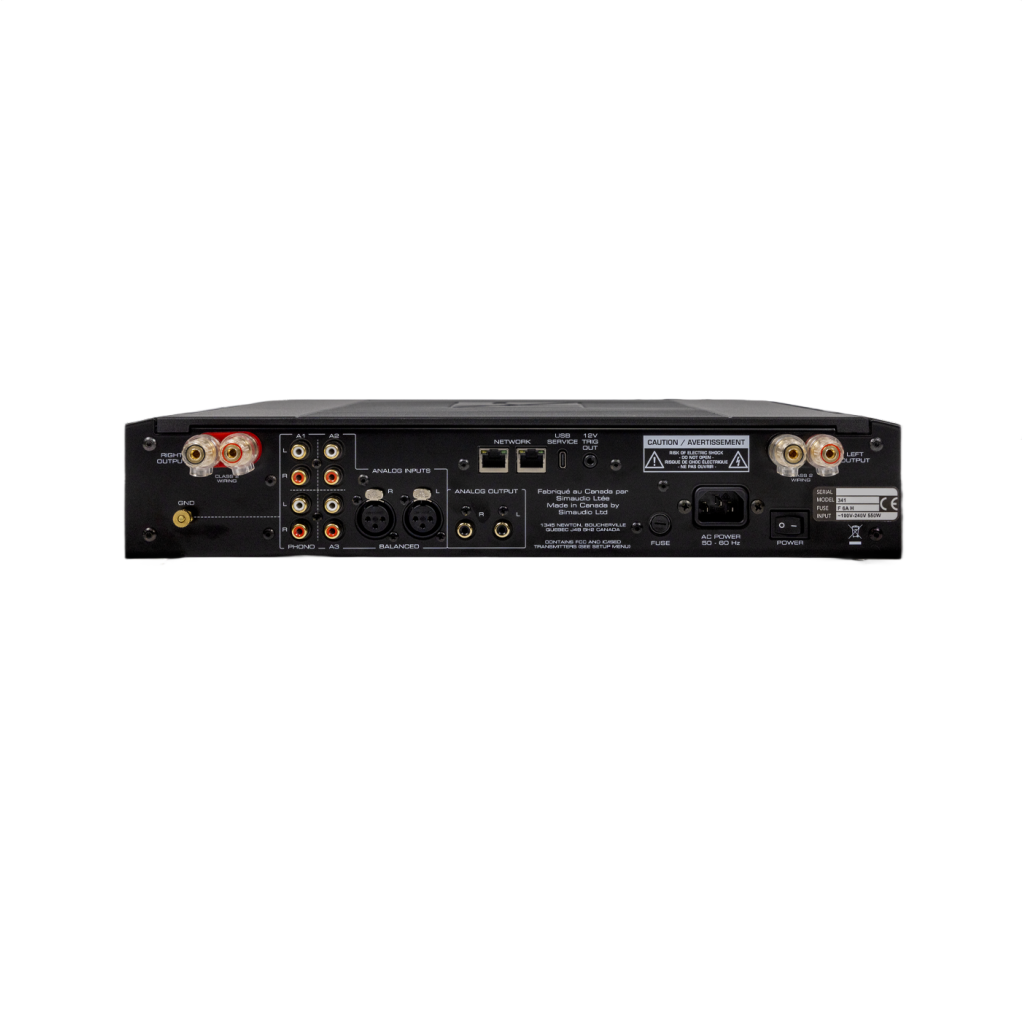

Four RCA inputs—including a dedicated phono input—and one
balanced XLR input provide flexibility for the sources that matter most. The
on-screen menu makes it easy to choose MM or MC pre-set phono configurations.
Its 6.75-inch graphic display presents essential information
clearly, while the CRM-4 aluminium remote offers precise control from the
listening position. The 341 is even compatible with the optional BRM-1
Bluetooth remote.

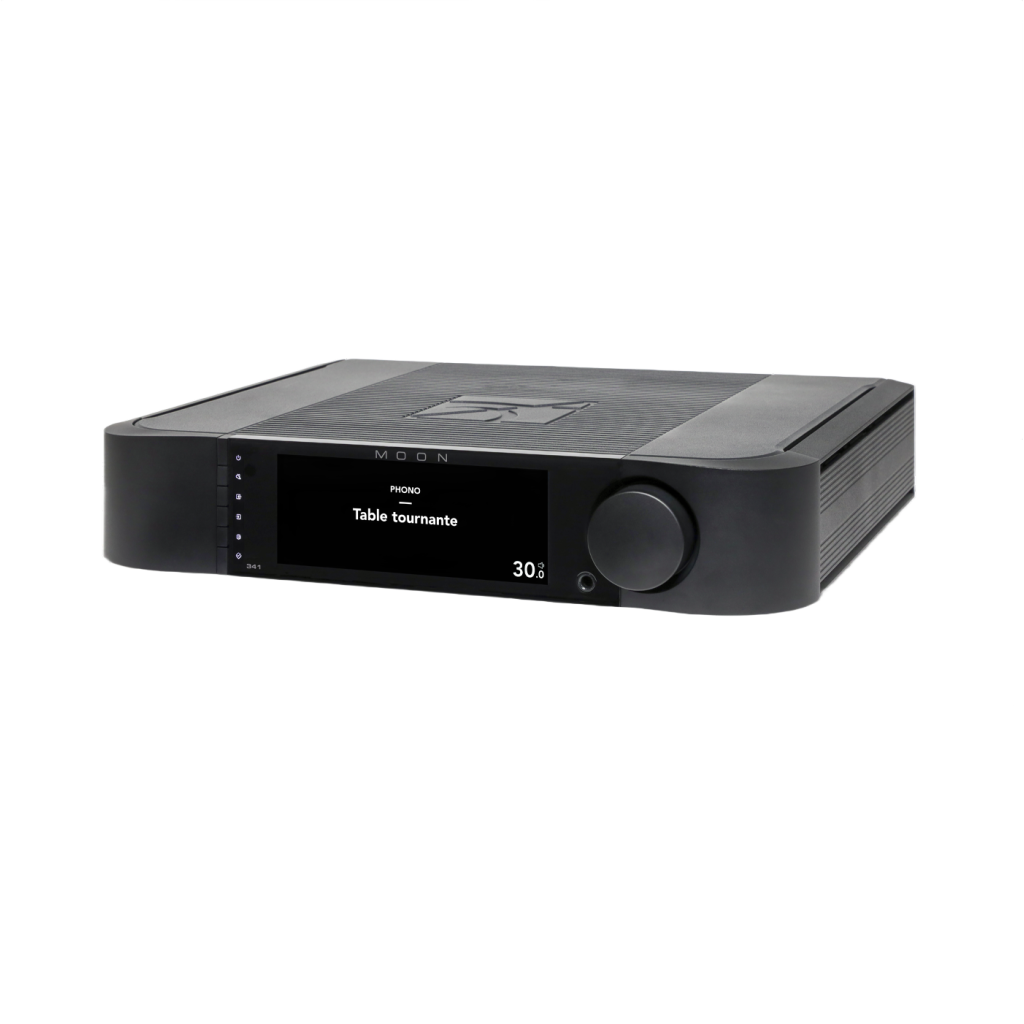

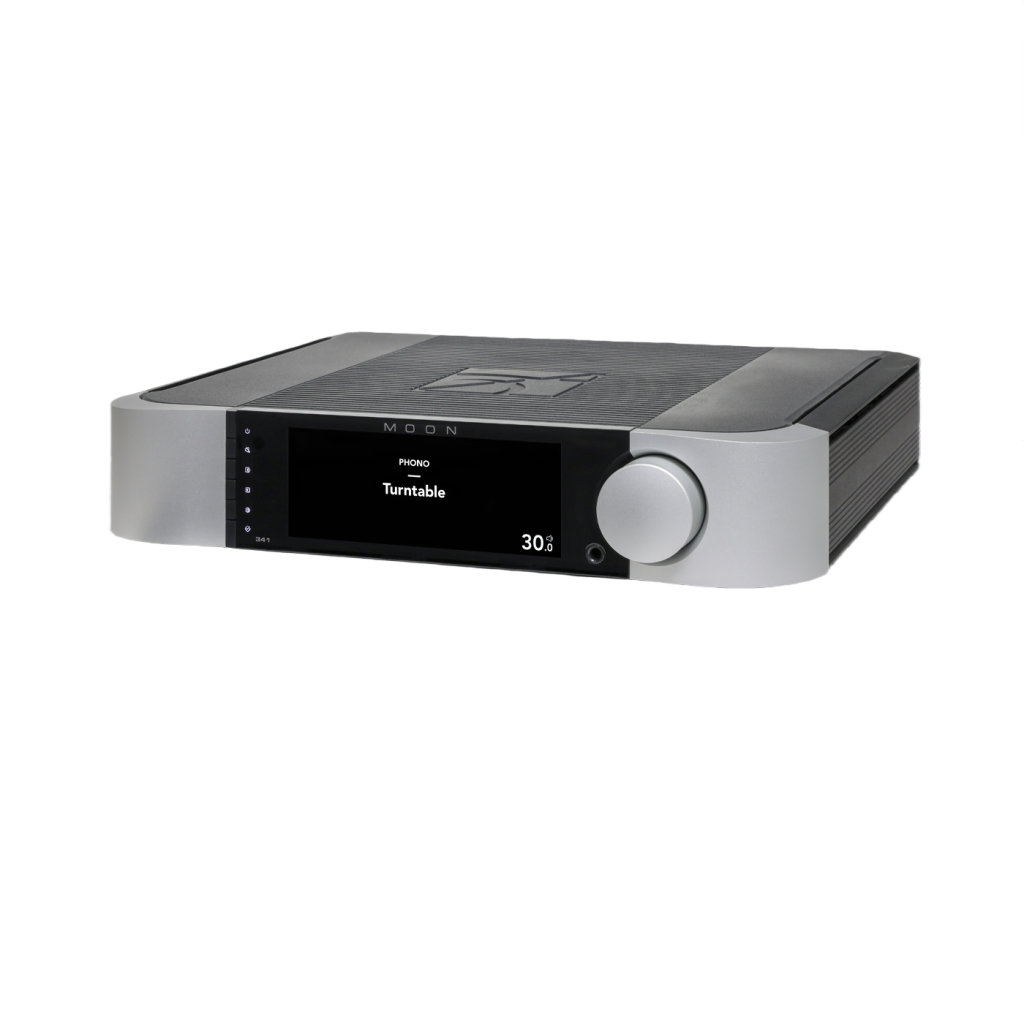

With bead-blasted aluminium cheeks available in black or
silver and the clean proportions of the Compass Collection, the 341 brings a
contemporary expression to a classic MOON concept.
MOON Fundamentals
The MOON 341 is designed to preserve the character of every
source while providing the control and authority expected of a MOON integrated
amplifier.
Its balanced preamplifier, MDCA amplification circuit and
800-watt MHP power supply work together to maintain clarity, dynamics, and
composure from the quietest passages to the most demanding musical peaks.
The MOON 341 permits owners the freedom to use the streamer
or digital source of their choice, keeping the analogue heart of the system
independent from the sources connected to it. Even the integrated phono stage
for both MM and MC cartridges enables the MOON 341 to easily adapt to a variety
of vinyl setups.
Design features
- MDCA
– MOON Distortion-Cancelling Amplifier
- 800
W MHP – MOON Hybrid Power with Active Power Factor Correction
- MOON
bipolar transistors
- Balanced
analogue preamplifier
- Phono stage with
menu-selectable pre-set configuration for either MM or MC
- MOONLink
on Dual-Ethernet port
- USB
service port for direct firmware update
- 6.75-inch
graphic display
- Bead-blasted
aluminium cheeks
- CRM-4
remote control and compatibility with the BRM-1 Bluetooth remote control.
10 Year Warranty (Terms & Conditions Apply)
3 Year Warranty CD Mechanical Parts Such as CD Drive (Terms
& Conditions Apply)
3 Year Warranty MiND Modules (Terms & Conditions Apply)
3 Year Warranty 110LP V2 (Terms & Conditions Apply)
| Amplifiers | |
| Frequency Response | 5 Hz - 100 kHz, +0/-3 dB |
| Output Power (8 Ohms) | 100 W |
| Output Power (4 Ohms) | 200 W |
| Inputs | 3 x RCA (Single Ended), 1 x Phono RCA, 1 x XLR (Balanced) |
| Dimensions (H x W x D) | 8.7mm x 42.9mm x 38.5mm |
| Weight - Unit | 9 KG |
