Moon 110LP V2 Phono Stage

  • Product Code: 110LP
  • £399.00

THE LITTLE BLACK BOX OF SUPERIOR VINYL REPLAY

The new MOON 110LP v2 phono preamplifier sits between turntable and amplifier to bring a dramatically improved performance from vinyl. Hand-crafted in Canada, this little black box of outstanding technology tricks will ensure that records sound better than ever before.

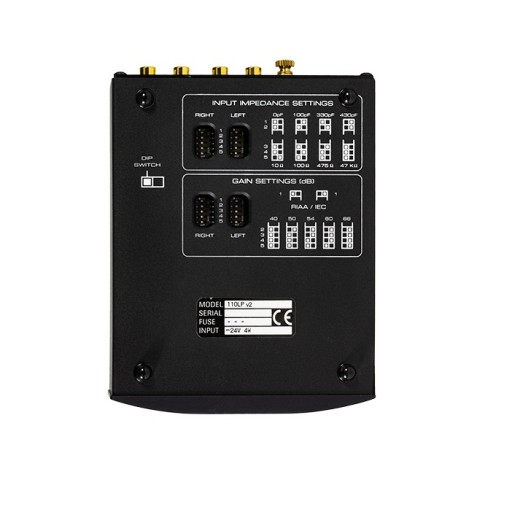

The Moon 110LP v2 has been designed for use with turntables without a phono stage, or to deliver dramatic audio improvement by bypassing an existing phono stage. Cartridge matching is made using three pairs of DIP switches on the unit’s underside and this discreet positioning ensures the sleek lines of the aluminium casing are not disrupted.

With its new slimline design, 24V power supply and increase in adjustment options (gain and impedance settings), the 110LP v2 significantly builds upon the high standards set by the previous model.

The Moon 110LP v2 delivers new levels of detail and musicality from any vinyl recording, and its sleekly compact form will complement any hi-fi system, wherever it is positioned.

The Moon 110LP v2 is available in a black finish and comes with a 10-year warranty. Sound Quality

Developed with award-winning technologies used in our more exotic phono preamplifiers, the Moon 110LP v2 represents another leap forward in sound quality and affordability.

Dynamic

Enjoy all of the Moon sonic characteristics available at a lower cost than ever; fast, tight, extended bass response, a natural open midrange, and airy extended high frequencies.  This is achieved through the combination of an improved power supply and an enhanced circuit layout. Another benefit is an increased input overload margin for trouble free use.

Convenient & Flexible

In a matter of just a few seconds, you can easily configure under the unit each of these four parameters: gain, curve, resistance and capacitance. As a result, replacing your cartridge will not render the MOON 110LP v2 obsolete.

Design features

End-user adjustable impedance loading (47kΩ, 475Ω, 100Ω, 10Ω)

End-user adjustable capacitance loading (0pF, 100pF, 330pF, 430pF)

End-user adjustable gain settings for moving magnet and moving coil cartridges (40dB, 50dB, 54dB, 60dB, 66dB)

End user selectable curve (IEC/RIAA)

Four layer PCB tracings using pure copper for low impedance characteristics

Inductive DC Filtering for a significantly lower noise floor

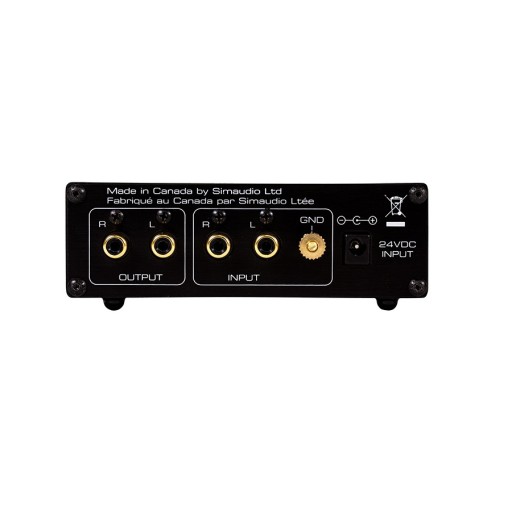

Compact, rigid all-aluminum chassis with gold-plated RCA connectors

Designed to be powered up at all times for optimal performance

Analogue - Phonostages
Frequency Response (RIAA Spec) 20Hz - 20kHz (± 0.5dB)
Gain 40dB / 50dB / 54dB / 60dB / 66dB (Adjustable)
Input Impedance Loading 10Ω / 100Ω / 475Ω / 47kΩ (Adjustable)
Input Capacitance Loading 0 / 100pF / 330pF / 430pF (Adjustable)
THD (Total Harmonic Distortion) 0.002% (20Hz - 20kHz)
Signal to Noise Ratio 104 dB (full scale @40 dB gain), 87 dB (full scale @60 dB gain)
Inputs 1 x RCA (Single Ended)
Power Consumption 2 W @ idle
Dimensions (W x H x D) 127 mm x 42 mm x 165 mm
Weight - Unit 1.0

10 Year Warranty (1 Year For CD Mechanism) - Terms & Conditions Apply
