Canor Verto D4S DAC

Canor Verto D4S DAC

Canor Verto D4S Solid-State DAC

Foundation Line

Canor Verto D4S

The Verto D4S is part of Canor's Foundation line and is a digital-to-analogue (DAC) converter offering a minimalist form factor and high end performance.

Canor Verto D4S

Highlights

⦁ Dual-mono discrete and symmetrical DAC architecture with galvanically isolated digital inputs ensures precisely separated signal paths.

⦁ Large high resolution touchscreen is the visual and control device centerpiece, delivering intuitive operation.

⦁ The device supports all commonly used digital inputs, ensuring broad compatibility with today’s audio sources.

Main Features

Lifestyle device packed with high end technology.

Minimalist design and premium materials frame a high-end, fully discrete dual-mono DAC, resulting in clear, natural, and accurate sound reproduction.

New design defined by premium materials.

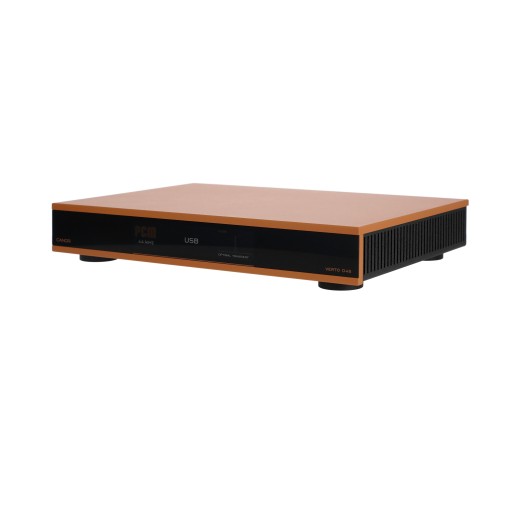

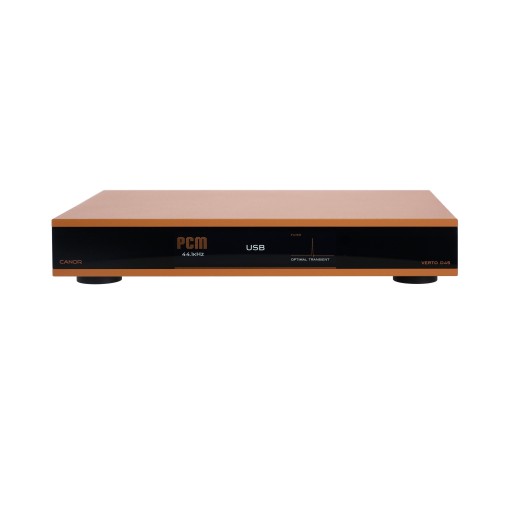

A new design elevated by premium materials such as aluminium, glass, and steel, introduced with Canor’s first ever bronze finish for a more unique and sophisticated presence.

Immersive 7 inch touch screen interface

The spacious 7 inch touchscreen offers excellent readability and smooth touch response, allowing effortless navigation and clear visual feedback during operation.

Dual mono ESS Sabre DAC architecture

Verto D4S uses a dual ESS Sabre 9038 chipset, configured for high dynamic range and ultra low noise performance. The analogue output stage is entirely discrete, with no operational amplifiers in the signal path.

Pure digital signal path through galvanic isolation

Galvanic isolation on USB, AES/EBU, coaxial, and optical inputs helps block noise and ground interference, preserving a clean and stable digital signal path.

Independently regulated linear power supplies.

Power is supplied by a linear power supply, with separate regulation for the digital and analogue sections. This minimizes interference and ensures stable operation.

Custom designed "Optimal Transient" digital filter

This filter enables true Non-Oversampling Mode operation by bypassing internal oversampling, eliminating pre and post ringing. This approach prioritizes time domain accuracy and musical timing over frequency domain perfection.

Versatile remote control, supporting all settings

The remote control allows full control over the device, including adjusting digital filters, switching inputs, changing display themes, and accessing other key functions with ease.

Product features

⦁ The Verto D4S employs a true dual mono architecture, with a dedicated ESS Sabre 9038 DAC chip for each channel.

⦁ The analogue output stage is fully discrete and symmetrical, free of operational amplifiers, delivering high dynamic range with ultra low noise performance.

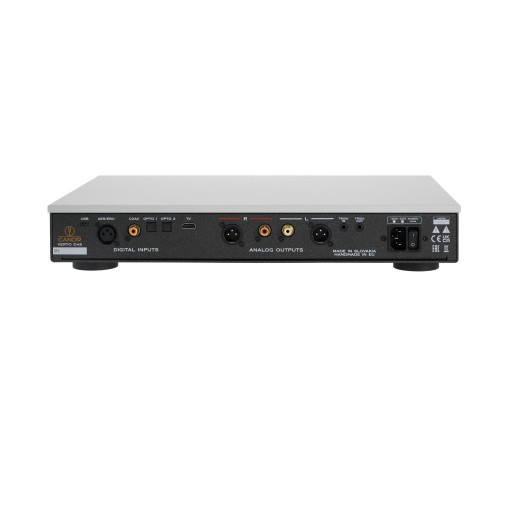

⦁ Coaxial, AES/EBU, USB and optical inputs are galvanically isolated, ensuring clean signal transmission and minimizing interference from the source device.

⦁ The 7 inch touch display combines a simple, clear, and intuitive user interface, ensuring comfortable operation of the device. The screen is easy to read even from a distance, contributing to a smooth user experience. It shows all key information, including input, sampling frequency, selected digital filter, and other settings, giving the user an immediate overview of the device’s status.

⦁ The display offers two colour theme options, allowing the user to select their preferred interface appearance.

⦁ Verto D4S supports a wired firmware update.
