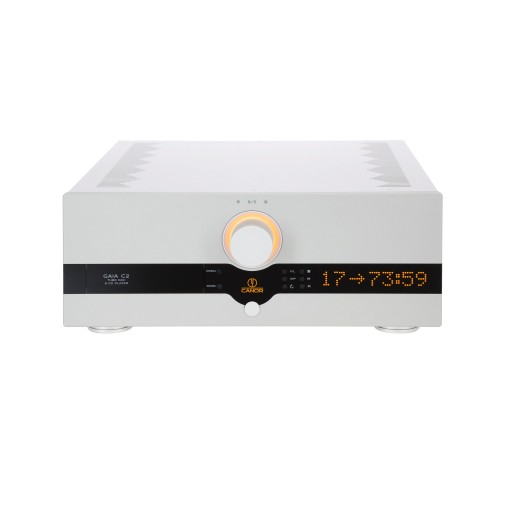

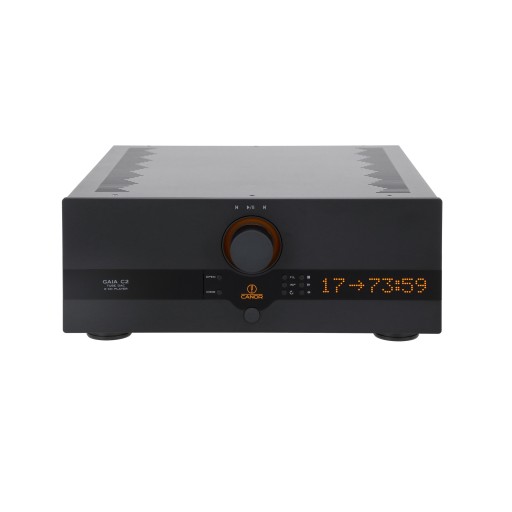

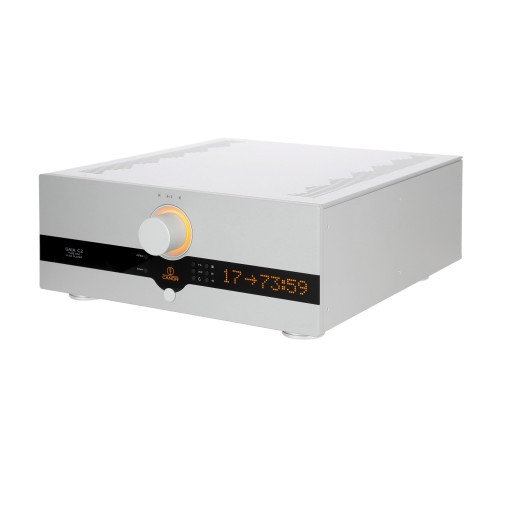

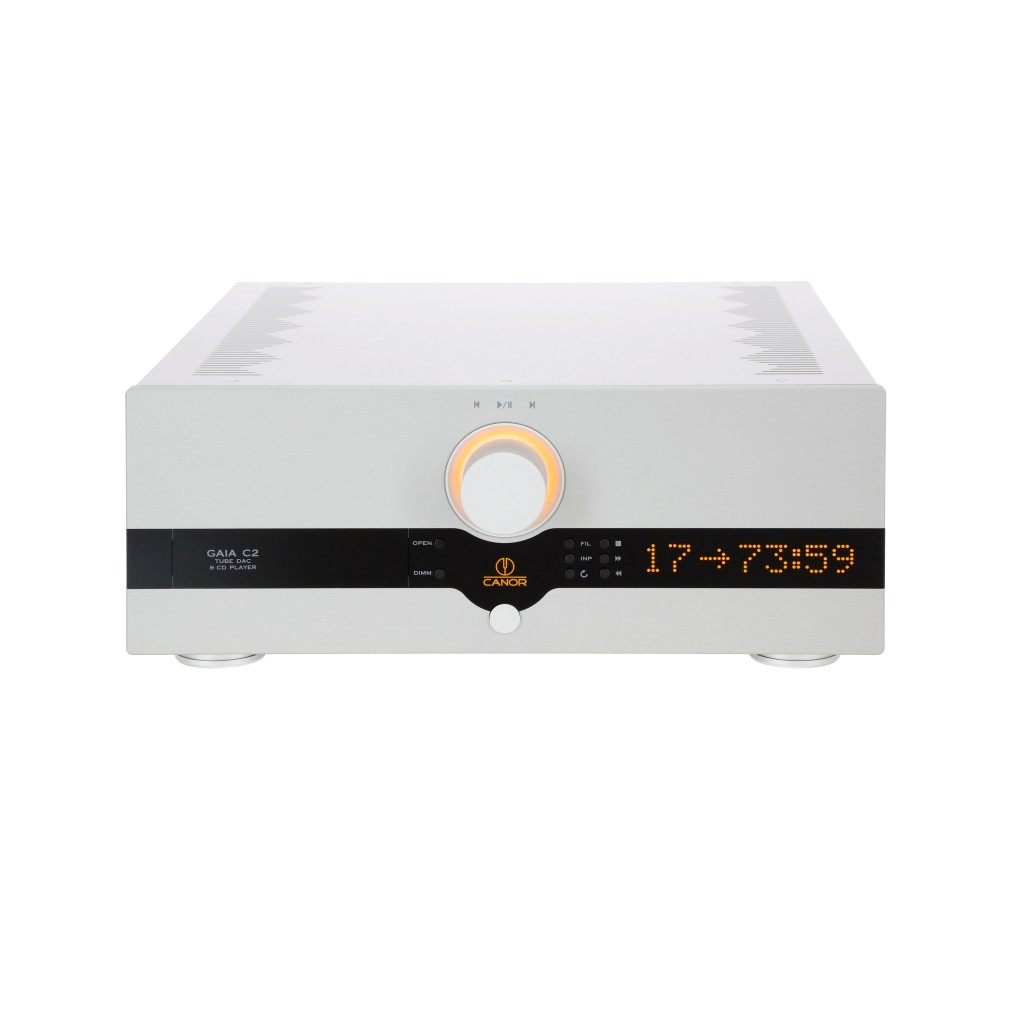

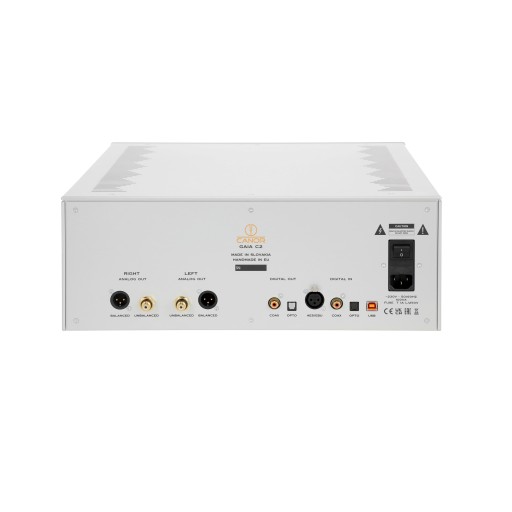

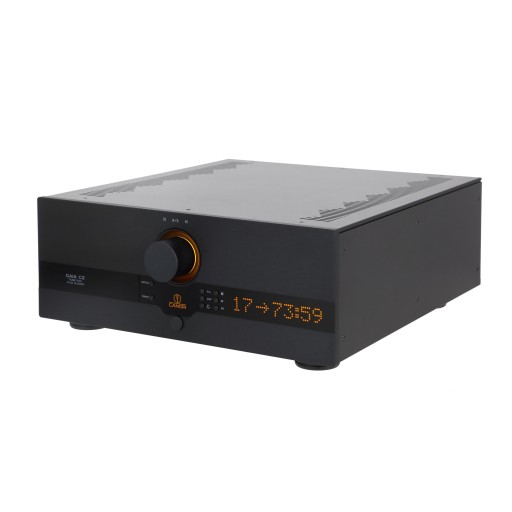

Canor Audio Gaia C2 Tube CD PLayer & DAC

Canor Audio Gaia C2 Tube CD PLayer & DAC

Canor Gaia C2 Tube DAC with CD Player

Premium Line

Precision tube D/A converter equipped with a complete set of digital inputs and CD playback support.

Highlights:

⦁ Tube Output Dual-mono DAC & CD Player

⦁ Multi-level galvanic isolation of digital elements

⦁ Symmetrical signal path design

Main Features

Four layer PCB topology of digital parts

The selected topology enables Canor to create very short digital signal paths, design circuits that effectively suppress high frequency interference, and achieve superior technical performance at the same time.

Top-of-the-Class DAC Configuration

The Gaia C2 features Texas Instruments PCM1792A D/A converters, delivering 24-bit resolution and supporting sampling rates up to 192 kHz. Thanks to their minimal distortion and symmetrical design, the Gaia C2 guarantees precise and natural sound and low noise reproduction.

Tube output stage

The Gaia C2 output stage features two 6922 / 12AX7 tubes, delivering a smooth, natural sound characterized by musicality and rich harmonics. Its carefully designed circuit merges the warm qualities of tubes with the precise performance of a digital source.

Multi level galvanic separation of digital elements

Thanks to multi-level galvanic isolation, both the S/PDIF inputs and the I2S bus are separated from the subsequent D/A converters. This design prevents noise and interference from impacting the signal, ensuring high quality sound reproduction on these inputs.

Anode voltage stabilization

Significant focus is on stabilizing and filtering the anode voltage for the analogue output, using a pure double vacuum diode as the core component, followed by five stages of filtration and stabilization.

Mechanically isolated power transformer

To eliminate mechanical hum, the transformer core is vacuum impregnated and encapsulated in a special anti-vibration compound. Additionally, the transformer is enclosed in a solid housing, which provides excellent electromagnetic shielding and enhances the signal-to-noise ratio.

Large, easy to read dot matrix display

The product is equipped with Canor's traditional large dot matrix display with excellent readability, which constantly displays key information about the song being played.

CMT ™ technology

The Gaia C2 utilizes Canor's advanced CMT ™ technology (CANOR ® PCB Milling Technology) for optimal performance. The CMT™ technology allows Canor to get the dielectric loss factors (loss tangent) of PCB close to the loss factor of air. Thanks to this technology they managed to get repeatedly to the parameter level of the so called “wire-to-wire connections“.

Product Features

⦁ Tube based D/A Converter and CD Player

⦁ A standalone 24-bit Texas Instruments PCM1792A / 192 kHz D/A converter for each channel

⦁ Dedicated tube output using 2 x 12AX7 / 2 x 6922 (E88CC) tubes and high-quality Mundorf capacitors

⦁ A high-precision CD drive with an eject tray loading mechanism

⦁ Super symmetrical passive filters optimized for the highest steepness

⦁ PCM 44.1 kHz - 192 kHz playback and DSD64, 128, 256

⦁ Two digital filter options, Natural and Dynamic

⦁ PCBs utilize Canor's premium CMT™ technology

⦁ Focus on keeping the I2S digital signal paths short, feeding the D/A converters

⦁ Implemented the input power filter
