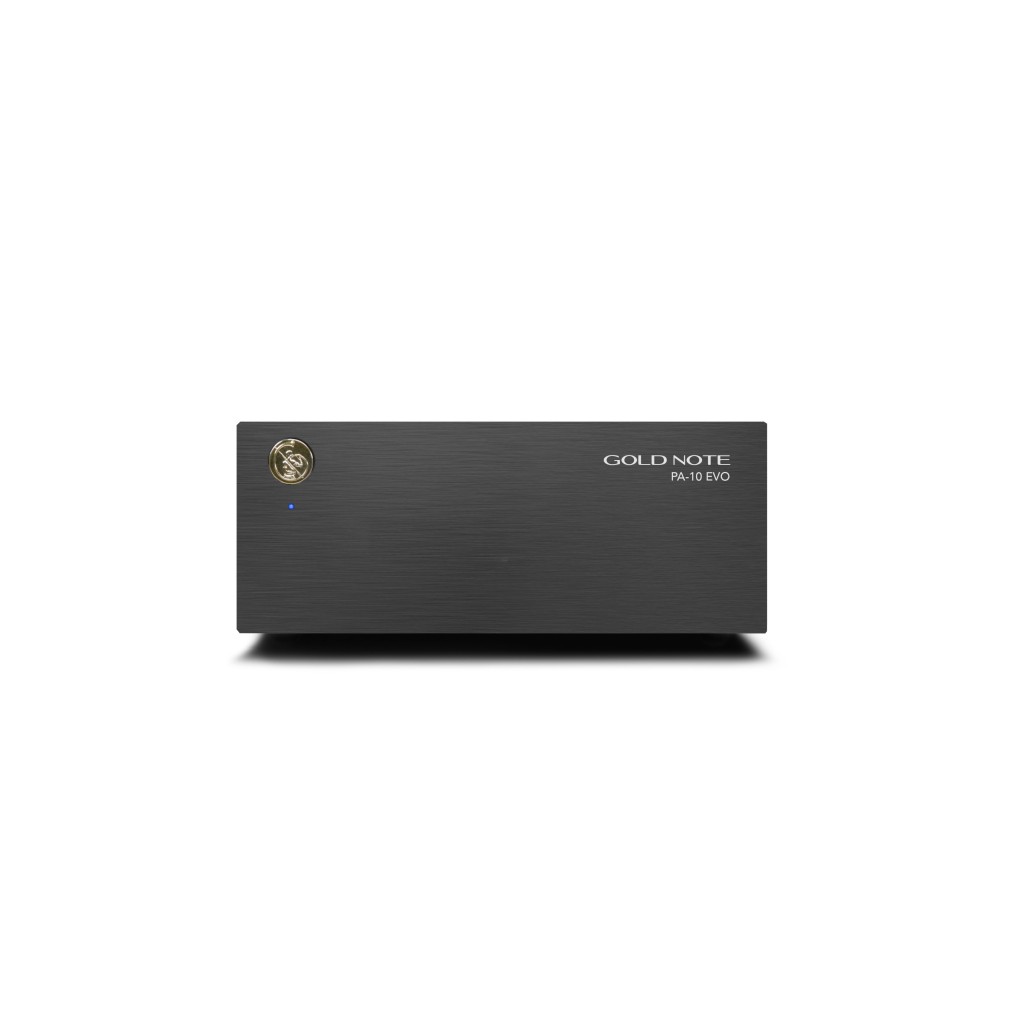

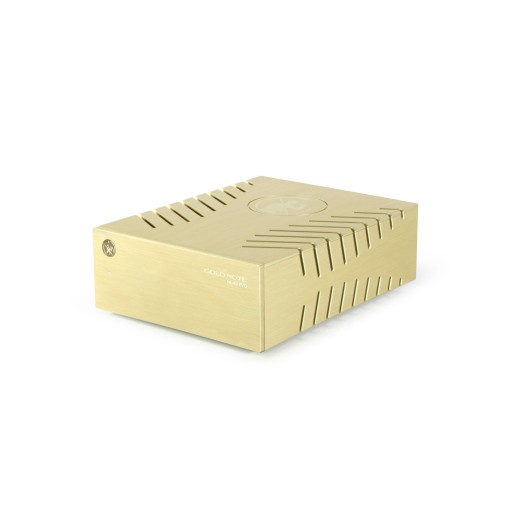

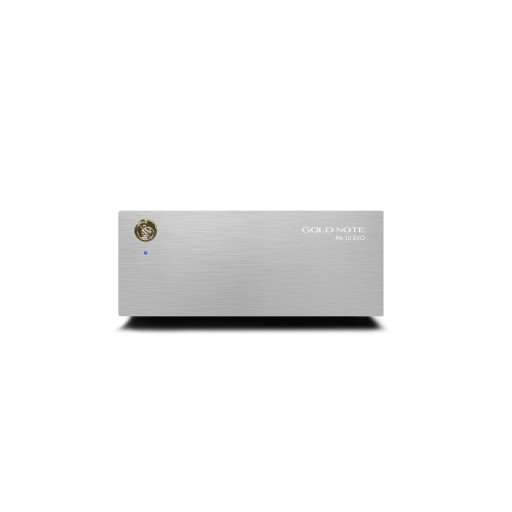

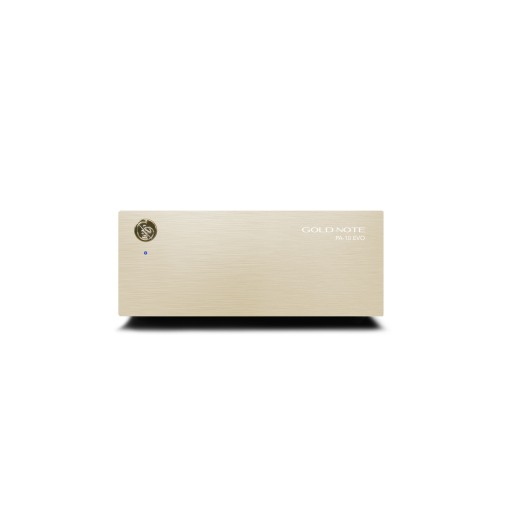

Gold Note PA-10 EVO Stereo/Mono Power Amplifier
-
£1,700.00
Available Options
Gold Note PA-10 EVO Stereo/Mono Power Amplifier
Compact and powerful - Introducing Gold Note`s new Mono/Stereo power amplifier
The new PA-10 EVO is a compact and versatile power amplifier, fully balanced and with high-power output, designed for modern High-End audio systems.
Musically engaging and controlled, capable of driving a wide selection of loudspeakers with power and control.
The PA-10 EVO can be used in Stereo or Mono mode, with two units as monoblocks to get the best audio performance. Carefully designed with select components, meticulously assembled and tested by hand, it features the ultra-solid chassis of the Series 10 in solid aluminium, inspired by the Italian style and our modular philosphy.
Despite the size, the PA-10 EVO is extremely capable and efficient, delivering 140W of power in Stereo (8Ω) and up to 250W in Mono (8Ω).
Damping Factor
Thanks to the adjustable damping factor, the amp can be perfectly matched with any loudspeakers (even 3 way floorstanding designs) as well as mini-monitors.

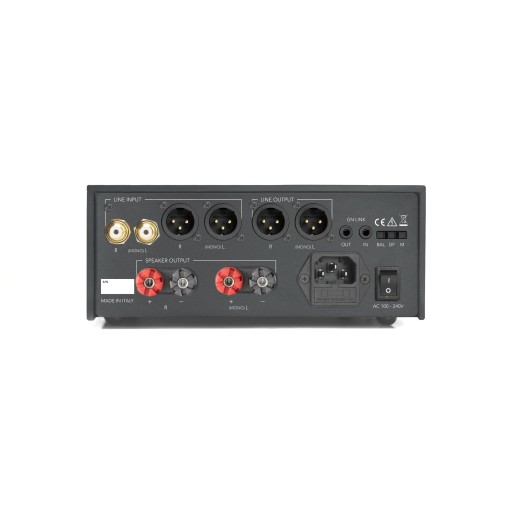

Inputs/Outputs
Featuring both balanced and unbalanced inputs, it can be connected to all sorts of sources and thanks to the GN Link technology, the amp can be easily switched ON/OFF from the source in master-slave mode.
Flexible Design
Paired with the DS-10 EVO and the A3 EVO II (or A6 EVO II) loudspeakers, the PA-10 EVO is the ideal power amplifier for a contemporary, compact high-performance system. With ability to be operated as mono power amplifier when adding a second PA-10 EVO you will be able to drive most loudspeakers with ease.
Also a single PA-10 EVO power amplifier can be used with the Gold Note IS-10 EVO integrated amplifier and can be used in mono mode offering 280 watts per channel which makes the PA-10 EVO a very flexible power amplifier.
Please Note: The PA-10 EVO cannot be matched to the PA-10, but it is fully compatible with all of other Gold Note electronics, pre-amplifiers and valve output stages.
2 Years (Terms & Conditions Apply)
Amplifiers | |
Frequency Response | 5Hz-50kHz (@ -3dB) |
Output Power (8 Ohms) | 140 Watts Per Channel (Stereo Mode) |
Output Power Bridged Mono Configuration (8 Ohms) | 250 watts Per Channel (Bridged Mode) |
Inputs | 1 x RCA (Single Ended), 1 x XLR (Balanced) |
Outputs | 1 x XLR (Balanced) |
Damping Factor | High = 250 or Low = 25 (adjustable) |
Dimensions (H x W x D) | 80mm x 200mm x 260mm |
Weight - Unit | 3KG |
