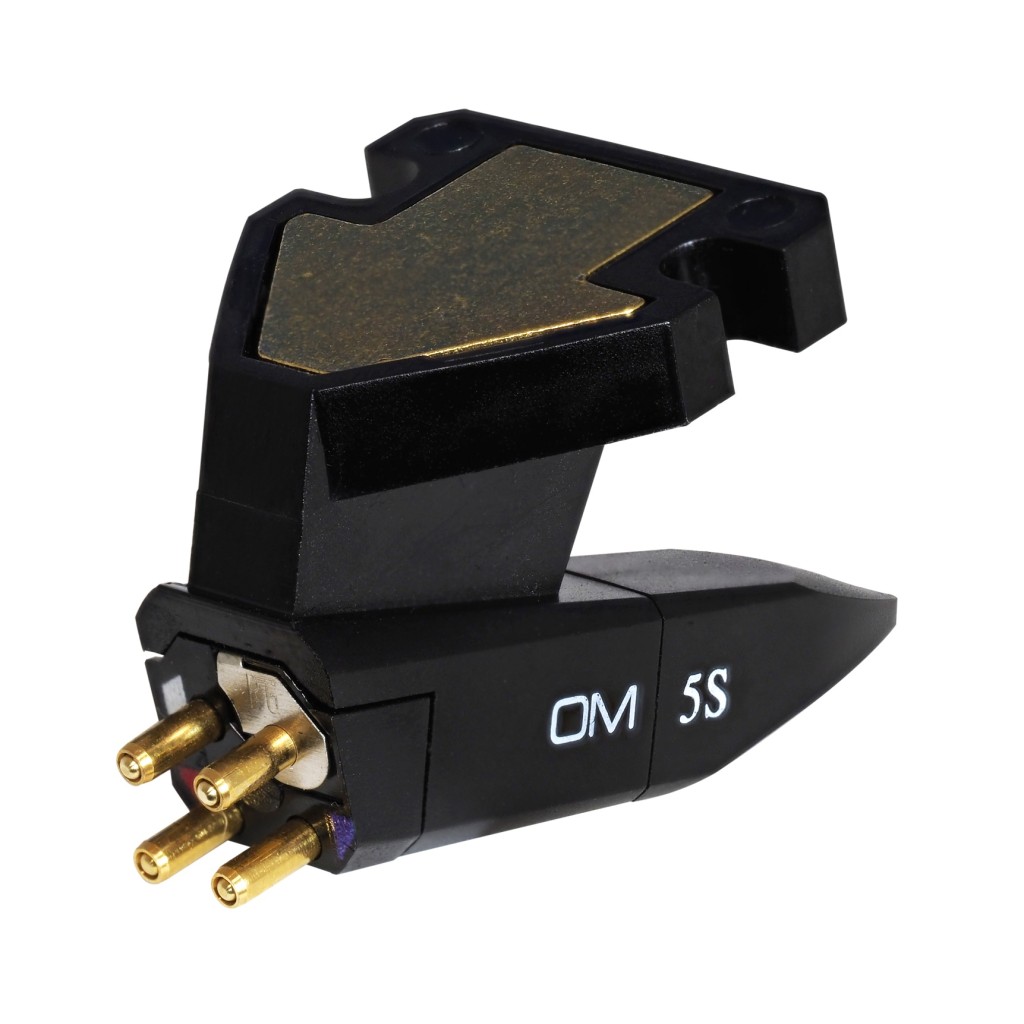

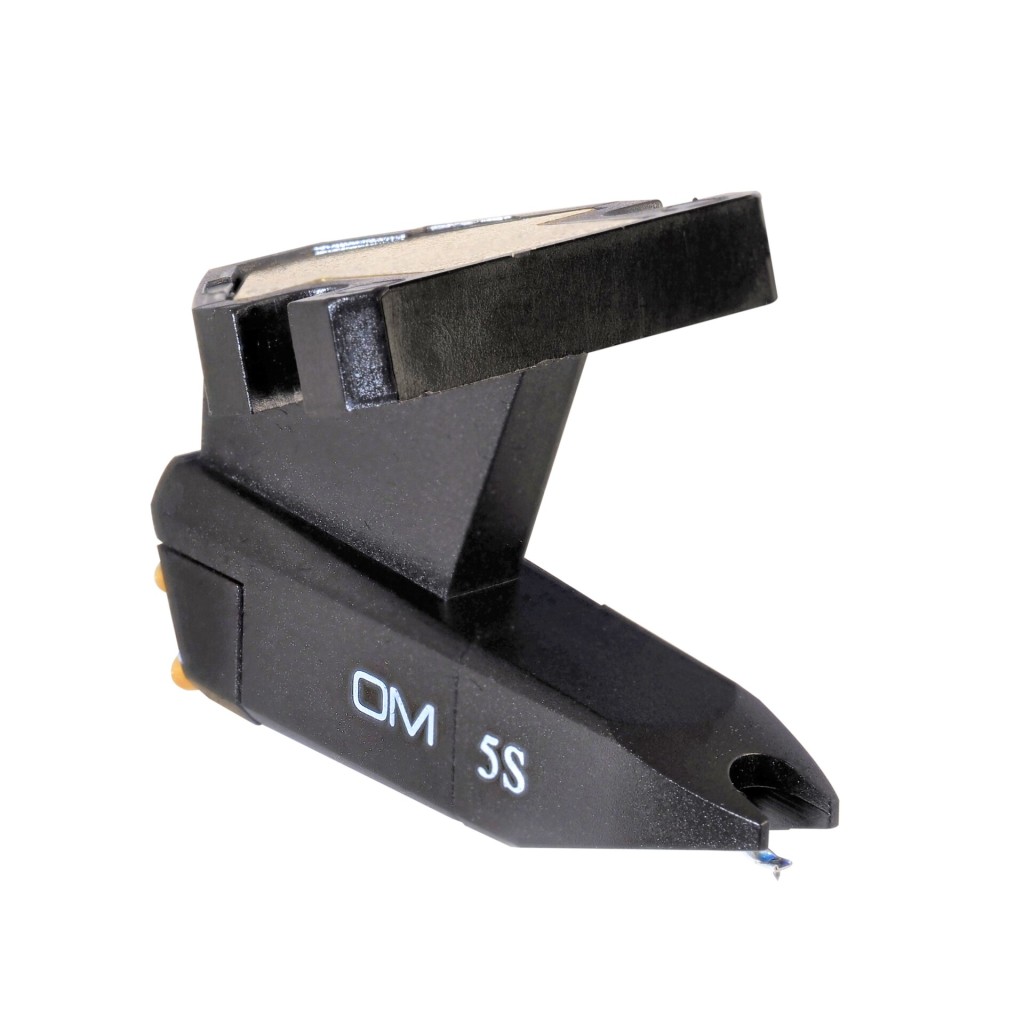

Ortofon OM 5S Moving Magnet Cartridge

  • £37.50

  • Product Code:  OM 5S
  • Availability:  1

Ortofon OM 5S Moving Magnet Cartridge

OM Series

The Ortofon OM Series encompasses three basic cartridges: OM5S, OM 5E and Super OM 5E. With its classic design, the OM moving magnet cartridge has been featured on innumerable hi-fi turntables over many years, and the latest range gives turntable owners easy access to great sound at an affordable price.

The OM Series is the lowest-mass range of moving magnet (MM) cartridges offered by Ortofon, and combined with their minimal design allowing for easy mounting and alignment and clear, loud output for easy pairing with a phono stage, they fully justify their "Optimum Match" (OM) name.

As well as being easy to fit to any tonearm/headshell system, all OM cartridge bodies also benefit from a tiny, removable weight above the mounting bracket. For standard tonearms, leave the weight in place as usual. For low-mass tonearms, you have the ability to remove the weight, reducing the cartridge weight to just 2.5g.

The OM 5S has been developed to give as many people as possible access to the superior audio reproduction Ortofon are recognised for worldwide. Finished with a high-quality Spherical (S) diamond stylus profile for excellent record hold, it's a great, affordable way to take a step-up in sound quality and clarity.

Replacement Styli
Due to its longevity in the market, the OM range features a number of upgrade stylus options, including the Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and the 78 RPM Stylus 78.

Key Features:

Affordable Optimum Match (OM) hi-fi cartridge

Hi-Fi sound reproduction

Spherical stylus profile

Easy tonearm matching

High output for easy matching to a phono stage

Easy stylus upgrades

1 Year Warranty (Terms & Conditions Apply)

Ortofon OM 5 Series Brochure
Ortofon OM 5 Series Spec Sheet
Analogue - Cartridges
Type Moving Magnet
Stylus Type Spherical
Output Voltage 4.5mV (at 1kHz, 5cm/sec)
Frequency Range 20Hz - 20kHz (at -3dB)
Tracking Force Range 1.5 - 2.0g (15 - 20mN)
Tracking Force (Recommended) 1.75g (17.5mN)
Recommended Load Impedance 47kΩ
Compliance 20μm / mN
Vertical Tracking Angle 20º
Weight - Cartridge 2.5g
