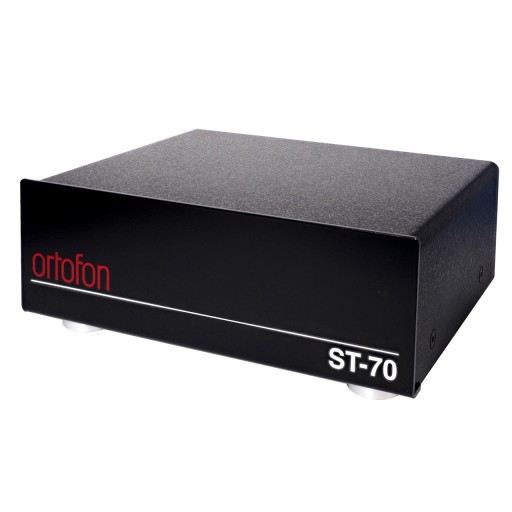

Ortofon ST-70 MC (Moving Coil) Step Up Transformer
-
£1,199.00
- Product Code: ST-70
- Availability: 1
Ortofon ST-70 MC (Moving Coil) Step Up Transformer
Step-Up Transfomer
The Ortofon ST-70 step-up transformer has been designed for discerning audiophiles and music lovers to elevate the overall performance of their vinyl hi-fi system. Optimised for premium Moving Coil (MC) cartridges and designed to take pressure off the phono stage, theOrtofon ST-70 combines high-end components along with world-class engineering, for unparalleled sound reproduction.
Starting with high quality Lundahl™ transformers, surrounded by a specialized mu-metal shielding, the Ortofon ST-70 is engineered from the ground-up to ensure that every detail in a complex array of notes is reproduced with utter purity, with freedom from internal and external sources of interference. Elsewhere inside the box, the dual-mono design provides discrete circuitry for each channel, resulting in the elimination of crosstalk and possible distortions. This results in cleaner, clearer reproduction with substantially increased stereo imaging. Regardless of the composition being played, the Ortofon ST-70's expansive stereo separation provides lifelike realism, and accurate tonal balance devoid of coloration.

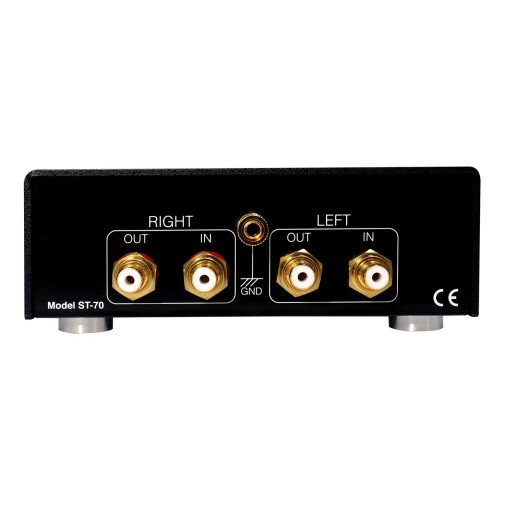

To further minimize signal degradation and maximize signal flow, the Ortofon ST-70 has been engineered using a high-quality, industrial-grade PCB. Additionally, gold plated RCA jacks with Teflon insulation provide optimal conductivity for use with high quality interconnects.
The Ortofon ST-70 is compatible with a wide range of higher-end Moving Coil cartridges thanks to its two Gain/Impedance options, set using internal jumpers. But for those already using Ortofon Cadenza cartridges, the ST-70 provides the perfect technical and sonic match to the range.
Key Features:
Premium step-up transformer
Ideal partner to the Ortofon Cadenza moving coil series
Upgrade your sound and reduce pressure on your phono stage
Premium components and electrical design
Dual mono design
Compact, stylish chassis
Two configurations for different gain/impedance cartridges
1 Year Warranty (Terms & Conditions Apply)
| Analogue - MC Step Up Transformer | |
| Frequency Response | Configuration A - 10Hz - 100kHz (± 1dB), Configuration B - 10Hz - 80kHz (± 1dB) |
| Gain | Configuration A - 24dB at 1kHz, Configuration B - 30dB at 1kHz |
| Recommended Cartridge Impedance | Configuration A - 5Ω - 50Ω, Configuration B - < 10Ω |
| Recommended Load | Configuration A - 47 kΩ / 200 pF, Configuration B - 47 kΩ / 200 pF |
| Dimensions | 43.5 mm x 122 mm x 102mm |
| Weight | 790g |
