YBA Passion PH-150 MM/MC Phonostage - Silver

YBA Passion PH-150 MM/MC Phonostage - Silver

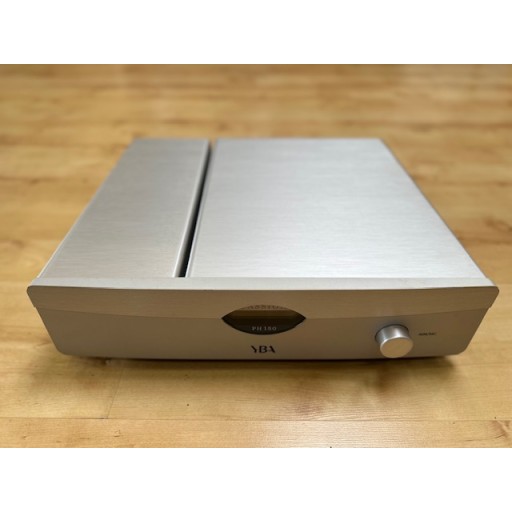

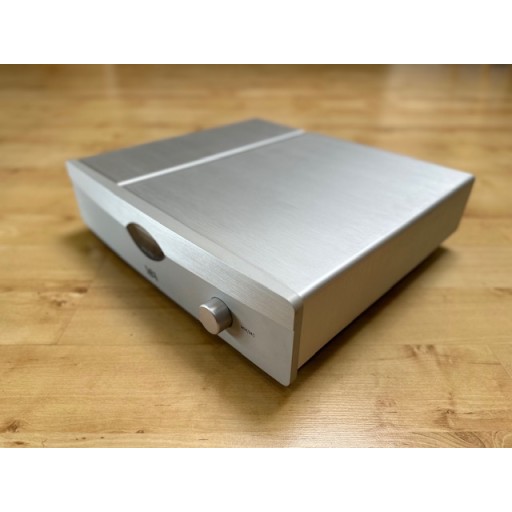

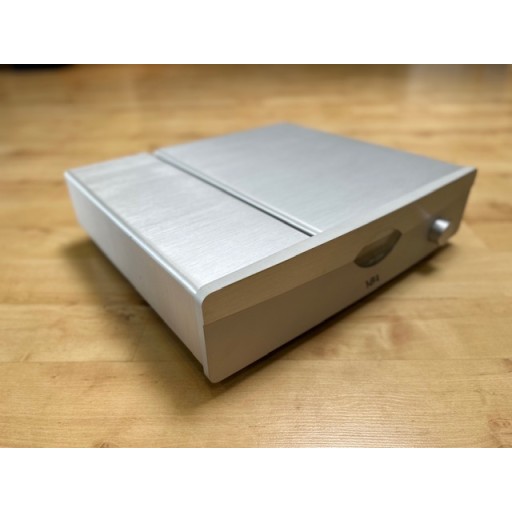

Superb condition YBA Passion PH-150 MM/MC phonostage in Silver finish which is being sold for the previous owner.

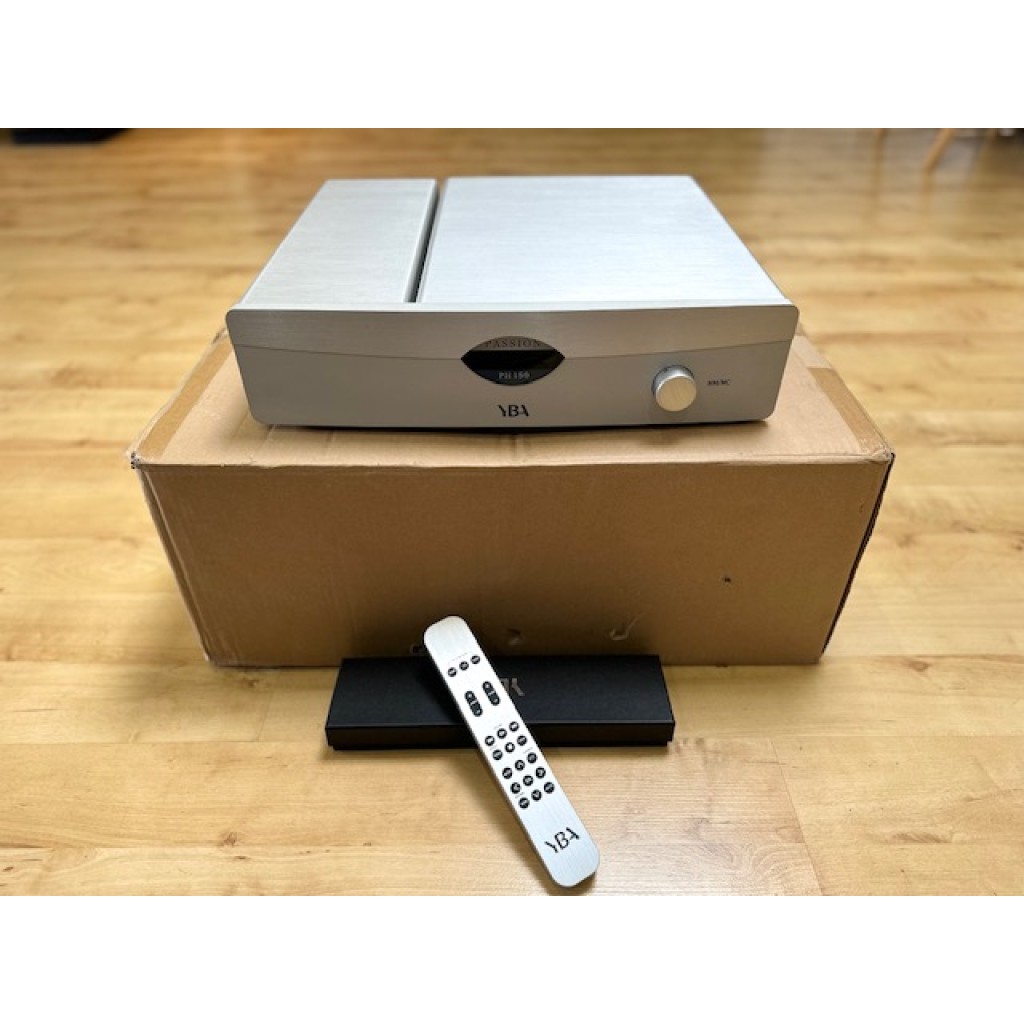

Due to work commitments this phonostage has not been used on a daily basis and is suppled with all original packaging, remote control, user manual and power lead.

Used within a smoke free home and very well cared for from new by the owner from new.

Description:

YBA PASSION PH150 PHONO PREAMPLIFIER

YBA manufactures its own MC transformer. Moving coils are known for their dynamic qualities, definition, wide bandwidth, coupled with great realism of reproduction. These qualities are attributable to the same principle of operation of moving coils that make them ideal generators. This explains their continued success with demanding users.

But their operation is very critical and depends mainly on the charging impedance and adapter, the characteristics greatly influence the electrical behaviour of the cartridge and therefore the quality of the sound reproduced.

The PH150 caters for MM, low output MC and high output MC cartridges. You will note that the selector control on the front panel of the PH150 has only two options – MM or MC – whereas there are three inputs on the rear panel. The circuitry has been designed so that it will automatically sense which type of moving coil cartridge is being used and settings will adjust accordingly. This is in keeping with YBA’s philosophy to avoid any unnecessary switching on the signal path.

It is strongly advised never to connect MM and MC cartridges at the same time as there will be a possibility with the high amplification factor that some noise could occur at the output stage.

The power supply of the PH150 is separated from the main circuitry. As amplification in phono pre-amplifiers is high, separating the power supply gives a dramatic improvement to performance. However rather than provide two separate boxes, we have chosen to separate the power supply within the one chassis.

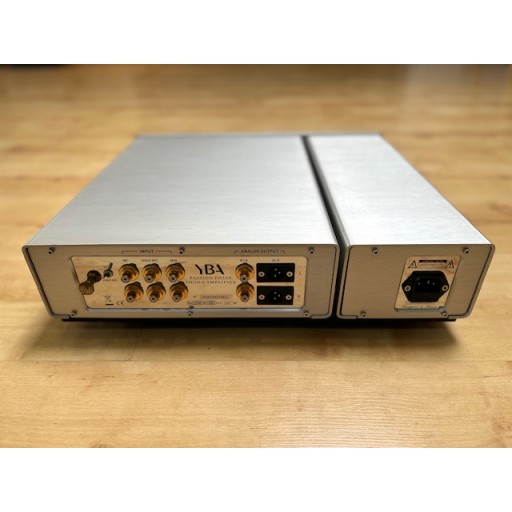

This is evident from the rear panel image and it allows the opportunity to use the standard style of Passion casework and front panel design features.
